IVC AMZ-3041-2 Rugged Fixed Certified Camera

SKU AMZ-3041-2 Categories , Tag

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-978-2040.

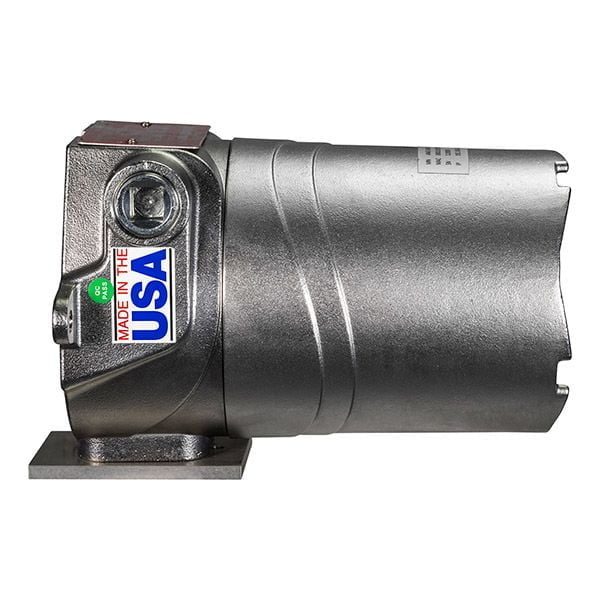

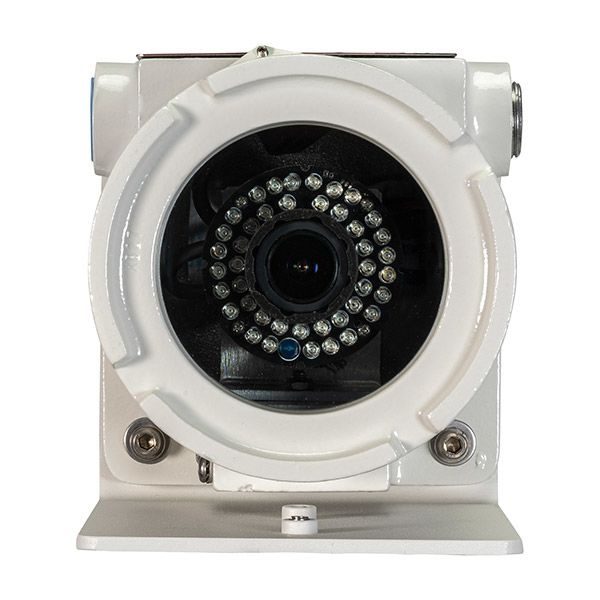

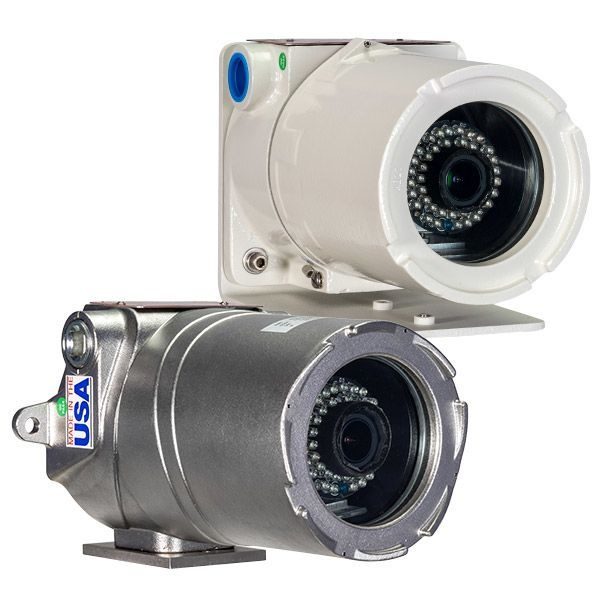

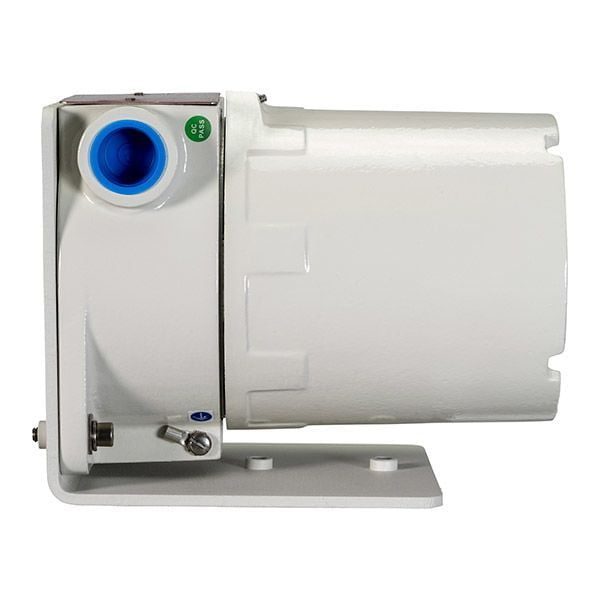

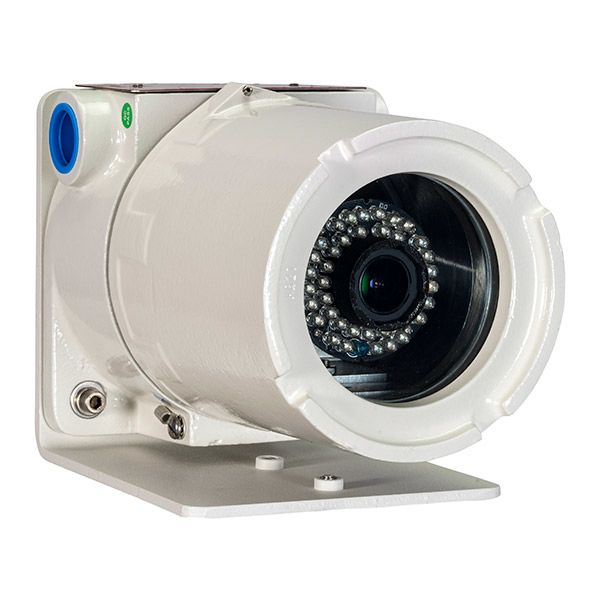

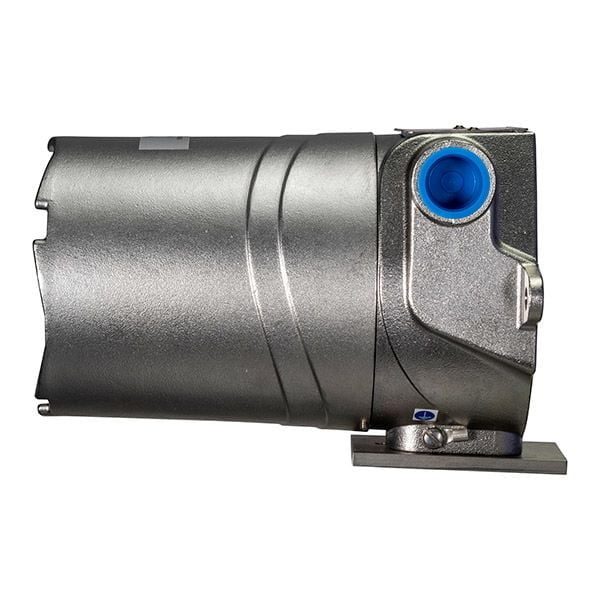

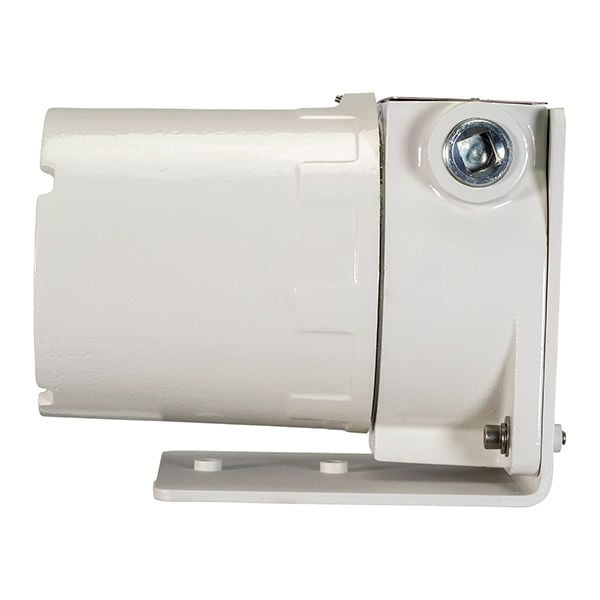

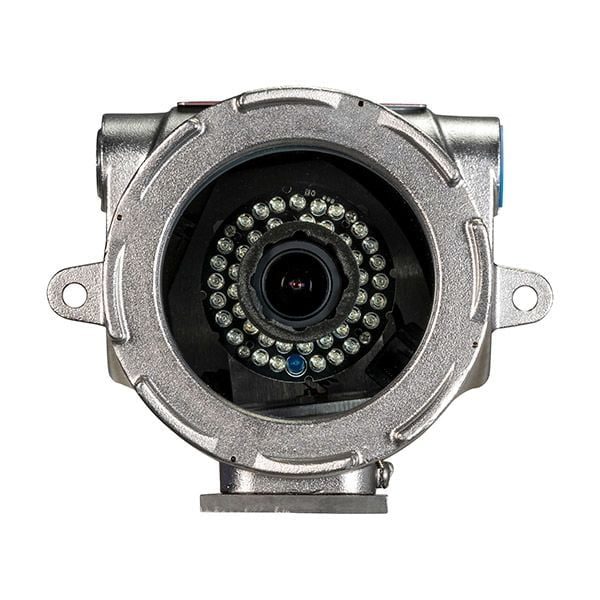

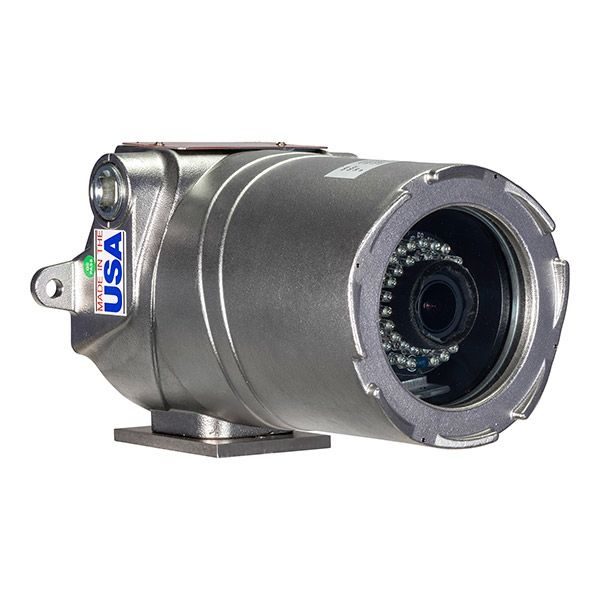

This compact, rugged, fixed, indoor/outdoor video camera delivers 1080p HD video at up to 30 frames per second. Enclosure options include heavy-duty cast-aluminum or stainless-steel, certified for use in hazardous areas.









We are an authorized IVC distributor shipping worldwide.

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Indoor/outdoor fixed camera
  • -40° to 60° range of operation
  • 12 VDC, 24 VDC, 24 VAC versions
  • Wide dynamic range
  • Certified for use in hazardous areas

The AMZ-3041-2 can be ordered with the following accessories:

MB-100Pole Mount Kit
MB-105Corner Mount Bracket
CT-46133/4″ NPT C1D1 cable gland
ACC-3122.8 – 12mm lens
ACC-3605 – 50mm lens
ACC-115-05White LED ring/20″ range



Technical Data

Imager1/3″ DPS CMOS
Minimum Illumination0.3 Lux (color); 0.06 Lux (b/w)
White BalanceAuto
Auto IrisDC iris
GainAuto
Horizontal Resolution525 TV lines (NTSC)      625 TV lines (PAL)
S/N Ratio50 dB (p-p/rms) or better
Protection ClassNEMA Type 4x, IP66
Video OutputVBS 1.0V p-p/75 Ohms
Weight8.1 lbs. (Aluminum Enclosure)
10.2 lbs. (Stainless Steel Enclosure)
Voltage Required12 VDC or 24 VAC
Power Consumption19.2 W Max.
Operating Temperature-40° to 60° C

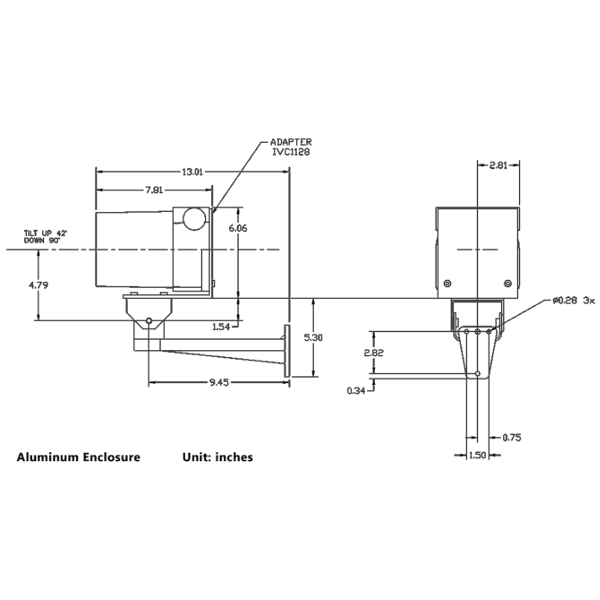

Dimensions5.50” H x 5.50”W x 7.75” D (Aluminum)
5.50” H x 5.50” W x 8” D (Stainless Steel)
MountWall Mount Standard
F-Number1.4
Regulatory Approvals
Hazardous AreaClass I Groups B, C & D,
Class II Groups E, F & G,
Class III Type 4x
Class I Zone 1 AEx d IIC
Ex d IIC IEC 60529, T6
SafetyConforms to UL STD 61010-1 + UL1203
Certified to CSA STD CSA22.2 NO.30 +
CAN/CSA C22.2 No. 25
EN 60079-0:2012, EN 60079-1:2007, EN
60079-31:2009.
ATEX 94/9/EC.

Approvals









Class I, Division 1, Groups B-D,
Class II, Division 1, Groups E-G,
II 2 GD Ex db IIC T6 Gb,
II 2 GD Ex tb IIC T80°C Db IP66
