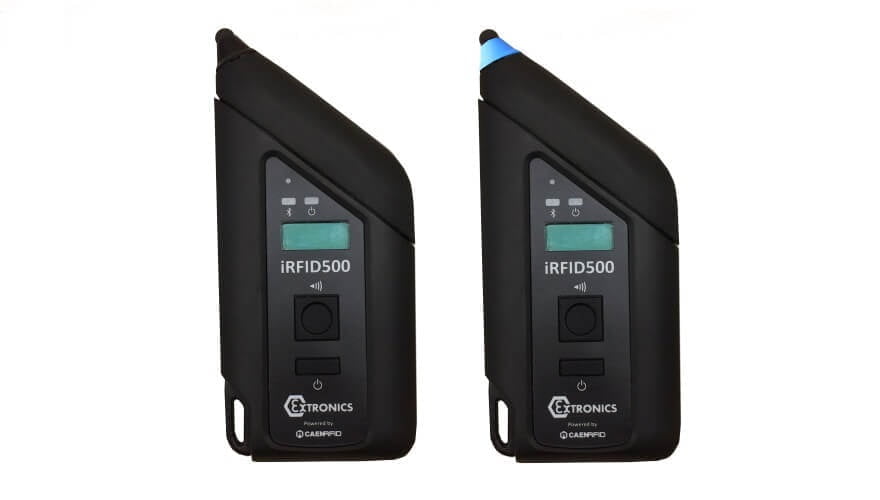

Extronics iRFID500 Handheld Bluetooth Passive UHF RFID Tag Reader

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

A highly rugged, handheld, Bluetooth, passive UHF RFID reader for industrial or hazardous area use.









We are an authorized Extronics distributor shipping worldwide.

$989.00$1,535.00

Clear

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Rugged industrial reader
  • Intrinsically safe version C1D1 and ATEX, IECEX Zone 1 certification
  • Long range Bluetooth connectivity
  • Positive read user notification
  • Lightweight ergonomic design
  • Doubles up as stylus for smart device
  • FCC and ETSI radio available

Technical Data

Certification (hazardous area variants only)Ex II 1 GD Ex ia IIC T4 Ga, Ex ia IIIC T135 Da
Ex I M1 Ex ia I Ma
cMETus Class I, II, III Div 1, Groups A-G
Operating Frequency865.6 – 867.6 MHz (ETSI EN 302 208 v. 1.4.1)
902 – 928 MHz (FCC part 15.247)
RF power0 – 200mW
Read Range0 – 1m (tag dependent)
Tag ComplianceISO 18000-6C/EPC C1G2
Battery LifeOver 12 hours when connected via Bluetooth and reading thousands of tags
Memory Capacity48K – 4096 EPC Codes
BluetoothClass 2 Bluetooth 2.1 + EDR, 10m range
Operating Temperature-20 to +55˚C (-4°F to +131°F)
Dimensions2.32 x 0.87 x 5.04 in (59 x 22 x 128 mm)
Weight.33 lbs (150g)
Ingress Protection RatingIP65
DisplayLCD alphanumeric (8 characters x 2 lines)
ButtonsTwo buttons: On/off and trigger/confirmation
Indication LightsTwo LEDs: power level and communication status
Internal ClockFor time stamping tag reads with date and time
OS CompatibilityWindows, Android, HID profile, Virtual com port
Data ConnectorMicro USB
IntegrationsSoftware Development Kit (SDK) available, including libraries for Visual C++,
JAVA, Android and Microsoft .NET

Approvals









Choose the variant that best suits your application, no matter when in the world it’s located. Fully certified as safe to use in ATEX, IECEx, and North American hazardous areas, the iRFID500 also holds radio approvals for ETSI and FCC frequencies.

ATEX and IECEx
Zones 0, 1, 2, 20, 21, and 22
Mining, M1
US and Canada Class I, II, and III, Div 1
