Description
- Android™ 10
- 4G (LTE)
- Bluetooth® 5.0
- 4.5 in Gorilla Glass® 3. Generation
- Quick charge with magnetic charging port
- Universal, lateral ISM interface
- PTT ready (third party application provided)
- Usable with gloves
Technical Data
| Type | IS530.1 |
|---|---|
| Operating System | Android™ 10 |
| Size | 3.10 x .98 x .6.20 in (80 x 25 x 155 mm) |
| Weight | .72 lbs (325 g) |
| PTT ready | optional (third party application provided) |
| LWP ready | optional (third party application provided) |
| Bluetooth® | 5.0 |
| Frequencies | GSM 850/900/1800/1900 MHz WCDMA UMTS B1/B2/B4/B5/B8 LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12 mit MFBI B13/B14/B17/B20/B25/B26/B28A/B28B/B30/B66 TD-SCDMA B34/B39 |
| Wi-Fi® | 2,4 GHz + 5 GHz IEEE 802.11 a/b/g/n/ac/e/k/r/h with max. 8 connections hotspot |
| NFC | Near Field Comunication |
| Display | 4,5“ (11.43 cm) Gorilla Glass® 3. generation, usable with gloves |
| Processor | Qualcomm Snapdragon SDM660 Octa-Core |
| Memory | 64 GB internal memory, 54 GB accessible, 4 GB RAM |
| Micro-SD | up to 128 GB |
| Camera | 2 cameras, 13 MP AF rear camera and 5 MP front camera |
| Battery | 3600 mAh battery (replaceable) |
| Operation range from | -20 °C to 60 °C |
| Security updates | Fully compliant with the requirements for Android Enterprise Recommended Rugged Devices. Quarterly security updates at least for five years from the launch. |
| Major upgrade | At least one major upgrade to Android 10 or higher. |
Resources
- Datasheet
- Safety Instructions and Quick Start
- ATEX Examination Certificate
- IECEx Certificate of Conformity
- CSA Certificate of Conformity
- EAC Certificate of Conformity
- INMETRO Certificate of Conformity
- KCs Certificate of Conformity
- PCEC Certificate of Conformity
- JNIOSH Certificate of Conformity
- EU Declaration of Conformity
K-COMM Push to Talk Solutions offers a push to talk solution that is tested and approved to run on the IS530.1 and IS530.2 Smartphones. Monthly subscription sold separately.
Approvals
- ATEX zone 1/21
(Approved for Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X - IECEx zone 1/21
(approved for International)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X - NEC500
(approved for North America)
Class I Division 1, Groups A, B, C, D, T4
Class II Division 1, Groups E, F, G, T135˚C
Class III Division 1 - EAC
(approved for Russia)
1Ex ib IIC T4 Gb X
Ex ib IIIC T135°C Db X IP64 - INMETRO
(approved for Brazil)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X - KCs
(approved for South Korea)
Ex ib IIC T4
Ex ib IIIC T135°C - PCEC
(approved for China)
Ex ib IIC T4 Gb
Ex ibD 21 T135°C - JNIOSH
(approved for Japan)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X - SANS
(approved for South Africa)
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
Included
- IS530.1 Smartphone
- Battery

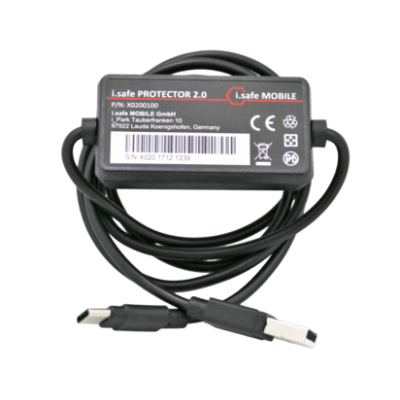

- i.safe PROTECTOR 2.0 USB Cable
- i.safe PROTECTOR 3.0 USB Cable Charger
- Quick Start Manual and Safety Instructions
