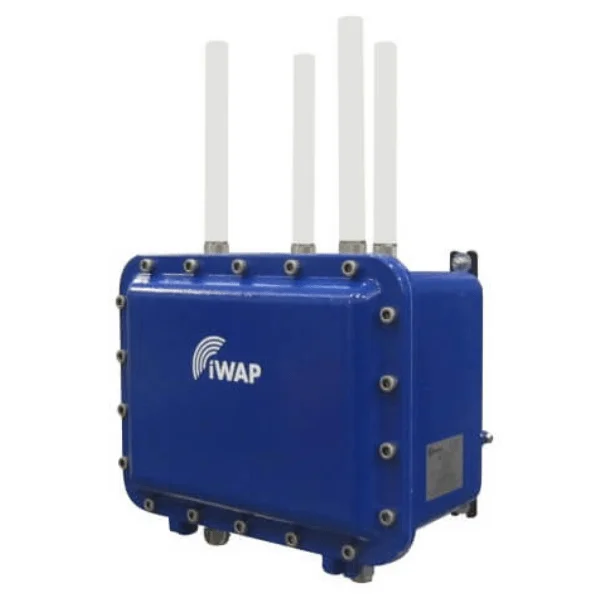

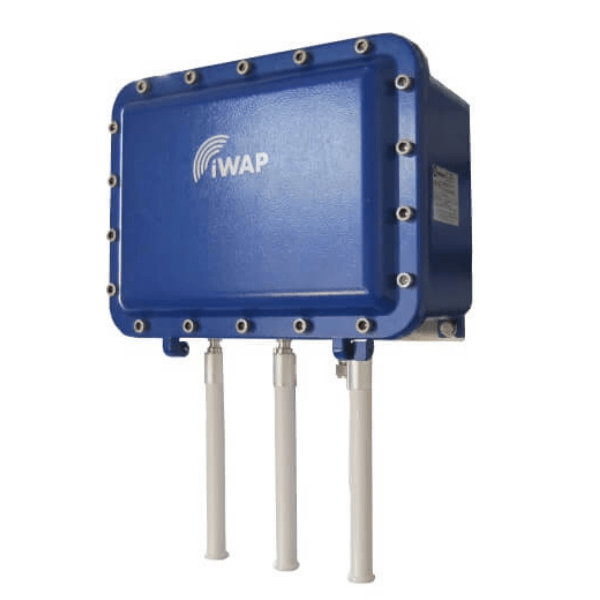

Extronics iWAP107 Zone 1/Division 1 Hazardous Area Wireless Enclosure System

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-978-2040.

Not just an enclosure, but a fully certified system including our innovative iSOLATE intellectual property; the iWAP107 enables cost effective wireless networking in hazardous areas.

Use any wireless technology

Choose the latest 802.11AC access points from market leaders like Cisco, Aruba, Siemens and more – make the most of their MIMO functionality for high performance Wi-Fi, even in metallic process environments.

You can also choose from a range of other wireless technologies, such as UHF RFID readers, LTE routers, and IoT gateways including LoRa, WiHART, or ISA100.

Easy installation

Installation and maintenance are simpler and quicker too. You can use standard tools – the internal iSOLATE501 RF Isolator and iSOLATE-CT Connector Transits mean there’s no need for barrier glands to install antennas – and what’s more, the antennas can be connected and disconnected live for minimal downtime.

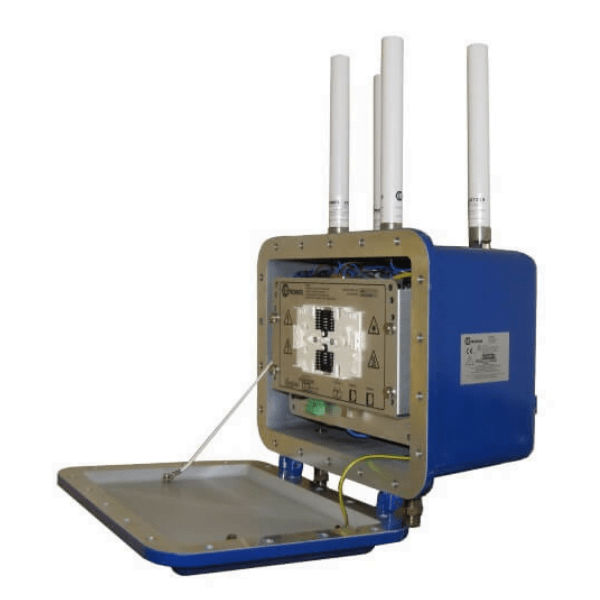

The iWAP107 is designed to withstand the most hazardous of conditions and is extremely rugged, with IP66 ingress protection. However, we understand that just because equipment needs to be durable, doesn’t mean that it should take up too much space or be awkward to install. The iWAP107’s internal design packs lots of functionality into a compact space, giving outer dimensions of just 415 x 315 x 250mm. Weighing in at around 30kg for an aluminum option, the iWAP107 can be easily maneuvered for installation across a range of locations.

Support and advice

The Exloc and Extronics teams are here to help you on every step of your wireless journey. We have sales engineers on hand to advise you before making a purchase, an experienced team to build your iWAP107 to your required specification, and a crew of after-sales technical support to answer any queries you might have.

The iWAP107 is covered by the standard Extronics warranty. We also offer an Extended Warranty option, for up to 5 years of coverage on your iWAP107.

Intrinsically safe outputs

With intrinsically safe RF outputs and explosion proof N-type antenna connections thanks to Extronics’ iSOLATE technology, you can choose from a wide variety of standard simple apparatus antennas. Get better reliability, lower cost, and improved coverage without the need for certification, and still be fully compliant with all hazardous area equipment regulations.

ANTENNAS

iANT212 Compact Wi-Fi Antenna

iANT216 Dual Band Wi-Fi Antenna
iANT213 Wi-Fi & GSM AntennaiANT217 Circular UHF Antenna
iANT214 Wi-Fi AntennaiANT218 3×3 MIMO Antenna
iANT215 Low Profile Wi-Fi AntennaiANT221 2×2 MIMO Antenna









We are an authorized Extronics distributor shipping worldwide.

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Designed to accommodate the wireless technology of your choice, from any vendor
  • Intrinsically safe RF outputs
  • Easy to install and maintain
  • ATEX & IECEx Zone 1 and 21 certified
  • US & Canada Class I Div 1 / Zone 1 and 21 certified



Technical Data

Hazloc ModeliWAP107
Zone 1 & 21 Access Point Enclosure
ATEX & IECEx Certified; Class I, Div. 1
ApplicationPermits installation of wireless devices from most popular vendors including Cisco, Aruba, Impinj etc.
EnclosureIP66 rated, marine grade copper free aluminum light alloy, epoxy powder coated, or optional 316L stainless steel.
Antenna ConnectorsThe iWAP107 features up to eight intrinsically safe RF outputs. We recommend use of our iANT200 series antennas. Other types subject to assessment.
Options
(not all options are compatible. See datasheet.)
Antenna surge protectors
Single & multimode fiber-optic inputs
10/100/1000Base-T Ethernet on CAT5 copper inputs
Enclosure heating
Universal AC power supply, or POE

Approvals







Europe
ATEX
Gas – Group II Category 2 (1)  G Ex db [ia IIC Ga] IIB+H2 T5 Gb Tamb -40°C to +60°C
Dust – Group II Category 2 (1) D Ex tb [ia Da] IIIC T100°C Db Tamb -40°C to +60°C
International
IECEx
Gas – Ex [ic Dc] tc IIIC T85°C Dc  Tamb -40°C to +60°C
Dust – Ex [ic Dc] tc IIIC T85°C Dc Tamb -40°C to +60°C
cMETusClass I, II, Div 1, Groups B-G
CLass I, II, Zone 1/21 Groups IIB+H2, III

Resources

Video

Check out the iWAP107 on site at Texmark Chemicals
Our iWAP107 access point enclosures have been deployed on site at Texmark Chemicals, Inc as part of a wireless infrastructure with Aruba access points and HPE Edgeline edge compute devices connected to I/O. We’re excited to hear that the technology is helping Texmark create the Refinery of the Future and streamline their processes.
