Extronics iCAM502 Intrinsically Safe Digital Camera

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

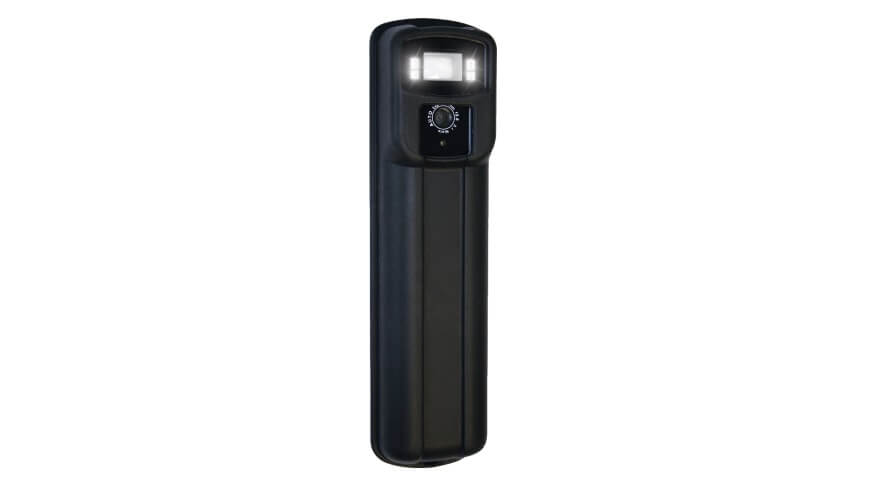

Made of rugged injection molded anti-static plastic, the iCAM502 intrinsically safe digital camera is IP65 rated for use in the most arduous environments, yet weighs only 7 ounces / 200g. The slim stick shaped design permits single-handed operation and convenient pocket carry. USB firmware upgrade utility available for Windows 2000, XP, Vista, 7 and 8 only.



We are an authorized Extronics distributor shipping worldwide.

$1,514.00

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Intrinsically safe, FM approved, ATEX & IECEx certified
  • Simple “point & shoot” operation
  • Optical viewfinder
  • 3.1 Megapixels
  • High performance auto-focus lens for even sharper images
  • Focusing as close as 2 inches / 5cm enables capture of tags
  • 1 GB flash memory, 5000 photos
  • Image stabilization
  • Super bright 131 lux.sec. four-LED flash
  • Voice recording in .wav format
  • User upgradable firmware
  • Compact – fits in pocket
  • Included silicon rubber sleeve for extra grip
  • Powered by AA alkaline batteries
  • Replacement for iCAM500, iCAM501 and iCAM501u
  • USB firmware upgrade utility available for Windows 2000, XP, Vista, 7 and 8 only

Technical Data

iCAM502 Auto Focus – Specifications
FM Certification
for USA & Canada
Class I, Div 1, Grps ABCD, T4 Ta= –20°C to +55°C
when using Duracell Plus or Procell MN1500 batteries;
Class I, Div 1, Grps ABCD, T3C Ta= –20°C to +50°C
when using Duracell Procell PC1500 or Energizer E91 batteries
ATEX Certification
for European Community
II 1 G Ex ia IIB T4 Ga, II 2 G Ex ia IIC T4 Gb, -20°C ≤Ta≤ +60°C
I M1 Ex ia I Ma 0°C ≤Ta≤ +60°C
IECEx Certification
for Accepting Regions
Ex ia IIB T4 Ga, Ex ia IIC T4 Gb, -20°C ≤Ta≤ +60°C
Ex ia I Ma 0°C ≤Ta≤ +60°C
Operating Ambient Temperature RangeUSA & Canada: +4 to +140°F / –20°C to +55°C max. depending upon battery. See user manual for usage table.
ATEX/IECEx Group II hazards: +4 to +140°F / -20 to +60°C
ATEX/IECEx Group I hazards: +32 to +140°F / 0 to +60°C
Image3.1 Megapixel, 2048 x 1536 resolution, jpeg format
Optical LensAutofocus lens, effective focal length 3.39mm, F2.8, 68° diagonal field of view
Focal Distance5 cm to infinity
ViewfinderTwo-element optical viewfinder
Flash4-LED flash giving 131 lux.seconds of energy at 67ms exposure
Audio Recording.wav format, files correspond to image filenames
MemoryOn-board 1GB NAND flash; holds approx. 5,000 jpeg images without audio recording, additional 960 Kbytes per minute for audio.
Time & DateTime and date stamping of stored images and file names.
Time and date set via Picture Transfer Protocol (PTP) automatically.
ConnectivityUSB 1.1 via mini-USB socket. CAUTION: for use in un-classified locations only.
OS SupportPTP imaging device in Windows 2000, XP, Vista, 7 and 8, and most versions of Linux. USB firmware upgrade utility available for Windows 2000, XP, Vista, 7 and 8 only.
Dimensions1.26 x .87 x 5.20 in / 32 x 22 x 132 mm
WeightApprox. 7 oz. / 198 g including batteries
Environmental ProtectionIP65; injection molded anti-static plastic housing.
Relative Humidity95% RH non-condensing
Power Source2x Duracell Plus / Procell MN1500, Duracell Procell PC1500, Energizer E91, or Panasonic LR6XWA alkaline AA batteries depending upon applicable regional certification and maximum ambient temperature. No substitutions permitted. See certification and user manuals for applicable choices. May only be changed in unclassified area.
Power ModesOperate, and auto power-down (after 3 min.)
Battery LifeUp to 600 shots without flash, or up to 100 shots with flash, all made in quick succession. 170 shots as per the CIPA DC-002 standard (mixed mode shots with and without flash).
Performance is influenced by many factors including ambient temperature, length of time camera is powered up, number of voice recordings, and frequency and length of time camera is connected to PC for data download.
ComplianceEMC: EN 55022 1998 class B, EN 55024 1999, LV: EN 60950 2002,
FCC Class A device, compliance through verification route.
In the BoxiCAM501U / iCAM502 digital camera, lanyard/wrist strap, removable silicon rubber sleeve, 2x AA alkaline batteries.

Approvals

Class I, Division 1, FM Approval for USA & Canada
