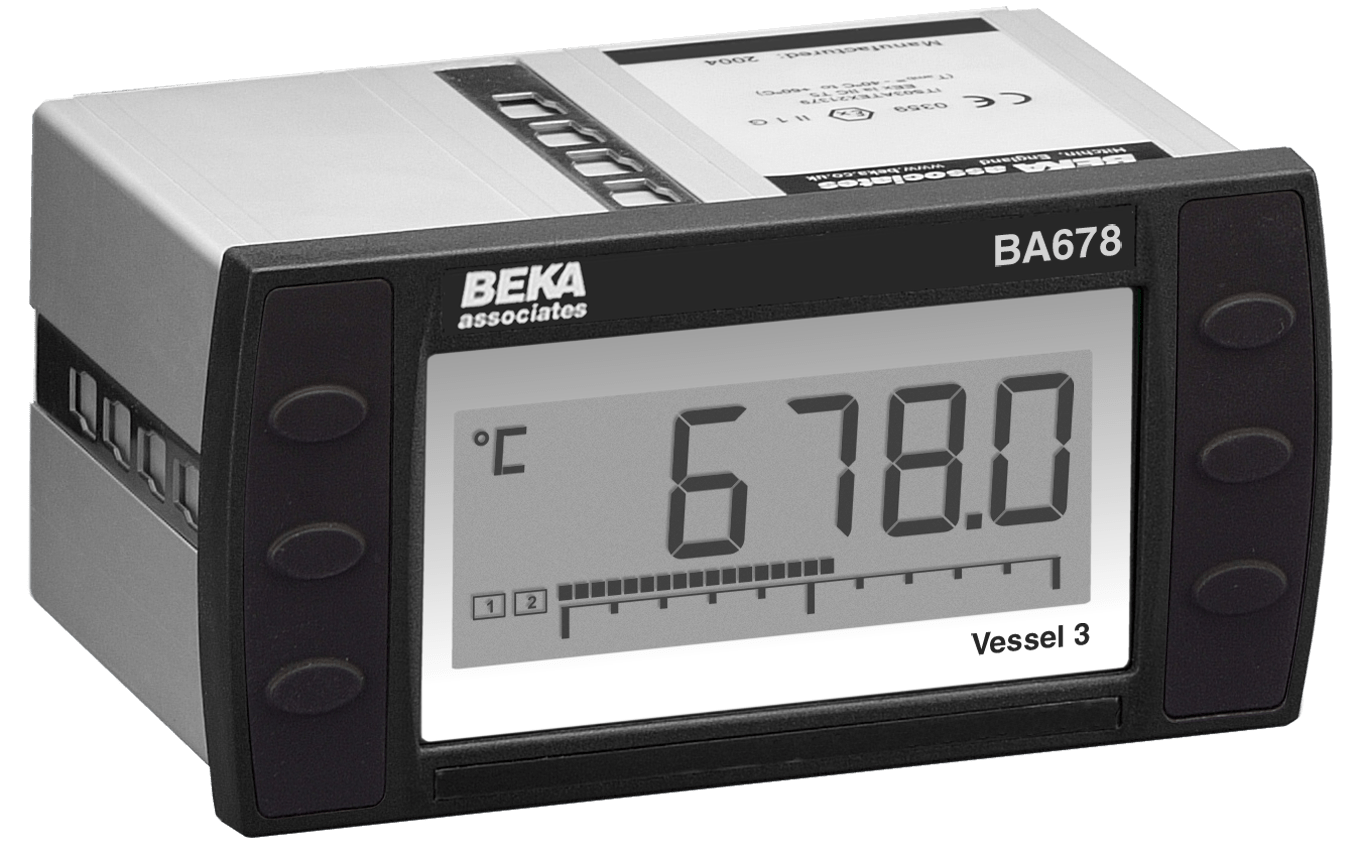

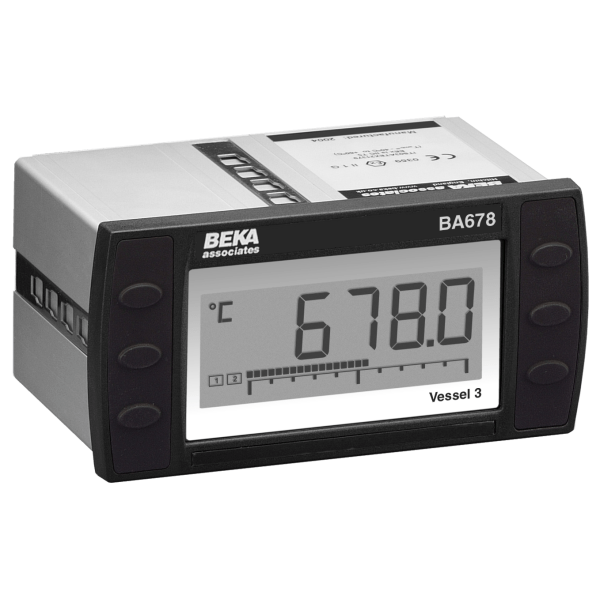

BEKA BA678C General Purpose Indicating Temperature Transmitter, Panel Mounting

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

This second generation, HART® enabled BA678C loop powered indicating temperature transmitter, provides a large, easy to read digital temperature display plus accurate 4/20mA analog and HART® digital outputs. Optional alarm outputs enable under and over temperature warnings to be generated and an optional display backlight enhances display visibility in poor lighting conditions. The transmitter has a galvanically isolated input allowing connection to any earthed or floating resistance thermometer, thermocouple, resistance or voltage source. High common mode voltages will not degrade the performance of this transmitter.

The BA678C transmitter may be configured using the front panel push buttons or via HART® digital communication.

The instrument can be supplied calibrated to customers’ requirements free of charge and can be labelled to show units of measurement, tag number and application.

Supported by a three year guarantee.



We are an authorized BEKA distributor shipping to locations in the United States.

$740.00$985.00

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • General Purpose
  • Large 5 digit display + 31 segment bargraph
  • HART® communication
  • Transmitter and sensor diagnostics
  • Loop powered
  • IP66 Front Panel

Optional:

  • Alarm/Control Outputs
  • Loop powered backlight
Display Readability (Loop Powered Backlight – Optional)
  Backlight, loop powered – Display readable in poor lighting conditions. indicators
  Maximum display for 5-digit indicators

Technical Data

Legacy StatusReplaces BA578C
Mounting & EnclosuresPanel 141 x 72 mm
Display5 digit 20 mm high + 31 segment bargraph
Ingress ProtectionFront IP66, Rear IP20
Alarm/Control OutputsOptional
Backlight – loop poweredOptional
