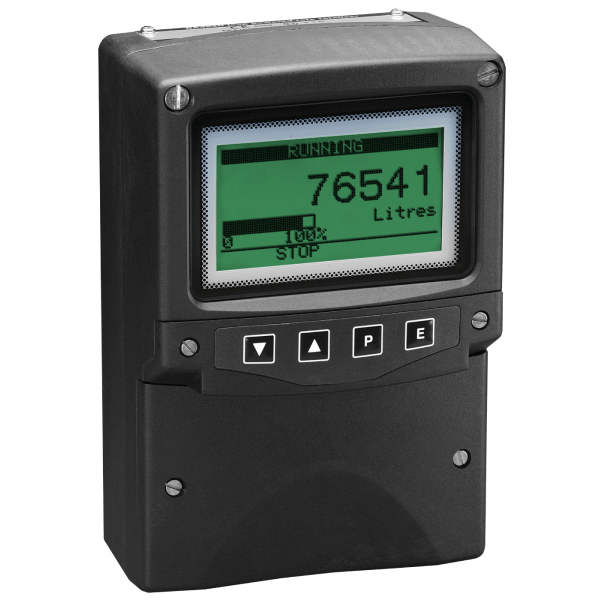

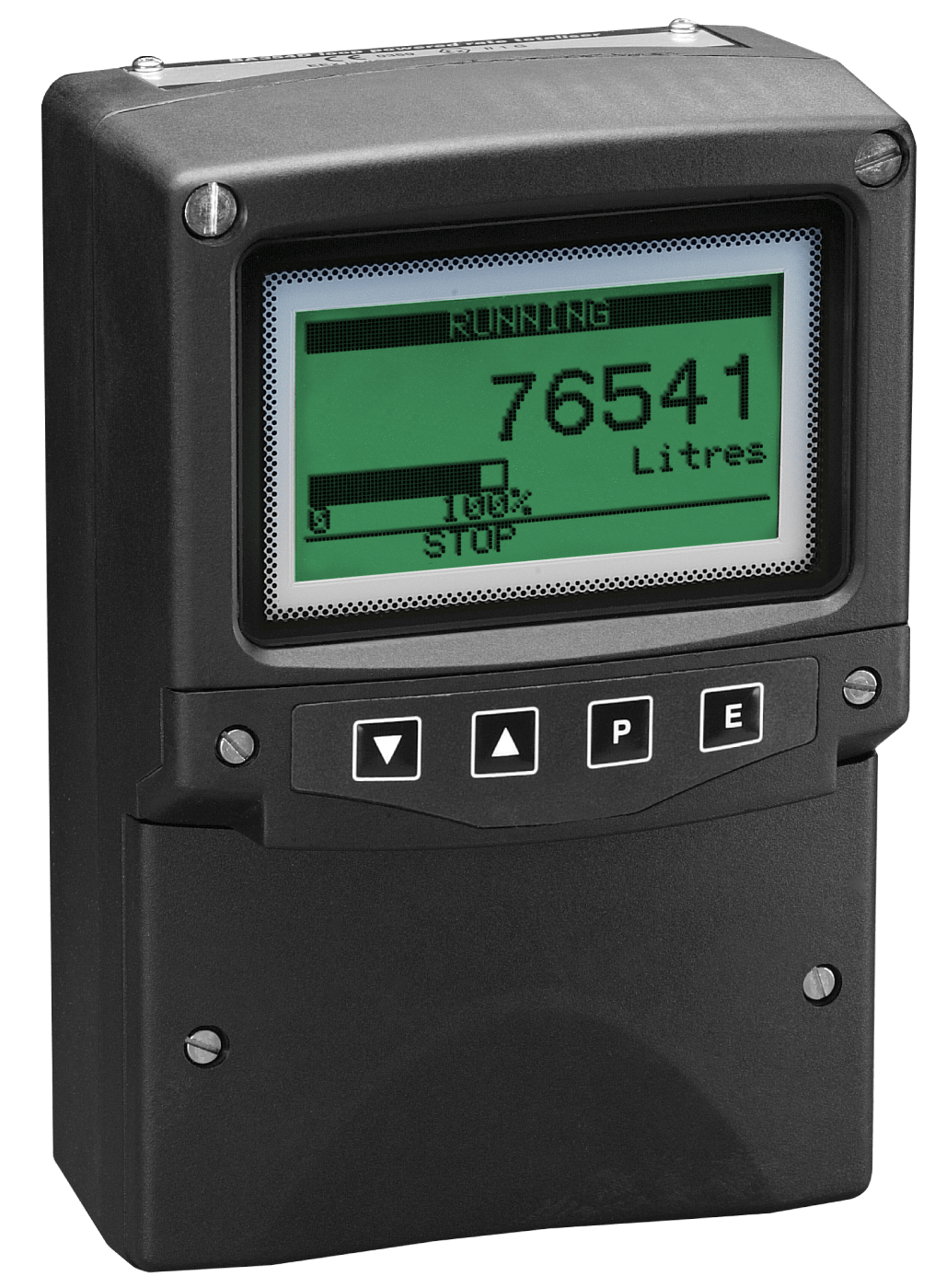

BEKA BA454D Intrinsically Safe Flow Batch Controller, Field Mounting

GET A QUOTE – For business orders requiring a written quote or for volume pricing please request a quote.

The BA454D is an intrinsically safe, second generation batch controller based on the successful BA350B. This field mounting controller is ideal for accurately dispensing liquids, solids or components in a hazardous area and despite its sophisticated control functions, it is easy to use and configure. Carefully designed display screens annotated in English, French, or German, lead the user intuitively through the available options. The BA454D accepts a pulse or 4/20mA analog input and incorporates a square root extractor and sixteen point linearizer allowing use with almost any flowmeter or sensor. Separate total and rate scaling factors enable the dispensed quantity and the rate of dispensing to be displayed in the same or in different engineering units.

Supported by a three year guarantee.









We are an authorized BEKA distributor shipping to locations in the United States.

$1,368.00$1,626.00

Clear

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Intrinsic safety certification
  • Easy to use
  • High contrast display with backlight
  • Accepts pulse or 4/20mA input
  • 9 setpoints
  • 3 configurable outputs

Technical Data

Legacy StatusBA350BP and BA350BC
Mounting & EnclosuresField
DisplayHigh contrast 86.5 mm x 45 mm with backlight
Ingress ProtectionIP66
OutputsThree galvanically isolated single pole, solid state, dc switches which may be individually configured as control or status outputs
Additional OutputsOptional (Three additional single pole, solid state, dc switches which may be configured as control or status outputs)
Stainless Steel TagOptional

Approvals







USA FM certification3610 Entity CL I Div. 1, Gp A, B, C, D, E, F & G T4 Ta = +60°

C3611 Nonincendive CL I Div. 2, Gp A, B, C, D, E, F & G T4 Ta = +60°C

Canada cFM certificationEntity CL I Div. 1, Gp A, B, C, D, E, F & G T4 Ta = +60°C

IPA CL I Div. 2, Gp A, B, C, D, E, F & G T4 Ta = +60°C

Europe ATEXATEX Group II Category 1G
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +60°C
Europe ATEX Dust certificationGroup II Category 1D
Ex ia IIIC T80°C IP66 Da
-40°C ≤ Ta ≤ +60°C
