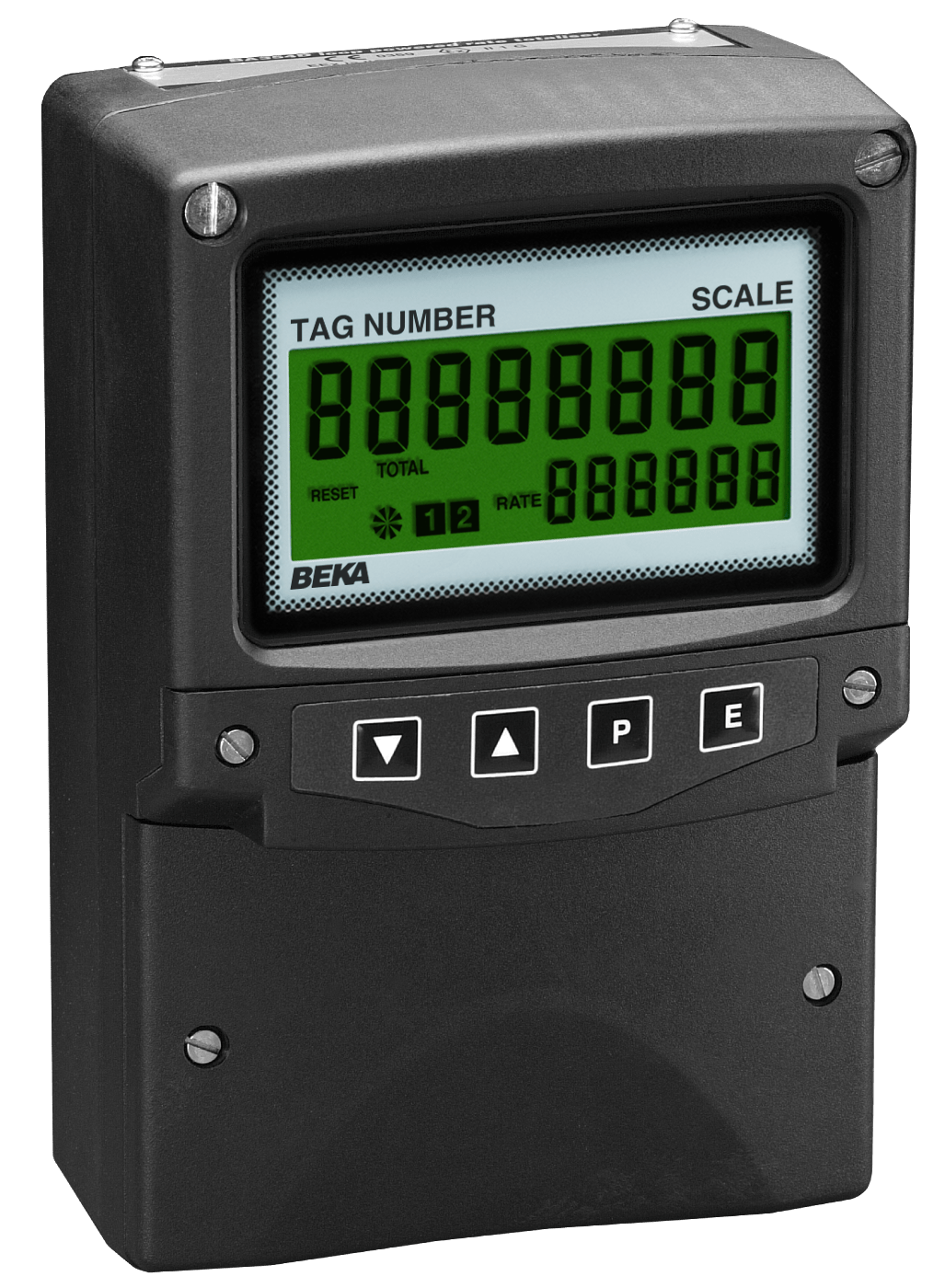

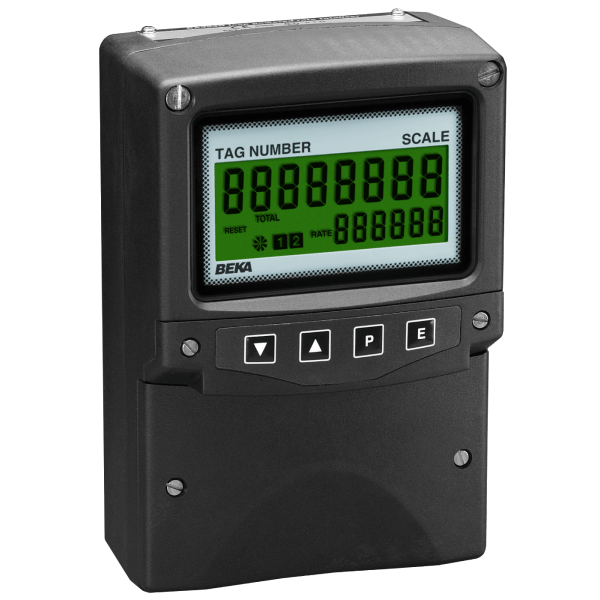

BEKA BA334E Intrinsically Safe Pulse Input, Externally Powered, Rate Totalizer, Field Mounting

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-978-2040.

The BA334E is a third generation intrinsically safe field mounting rate totalizer housed in a robust IP66 GRP enclosure with a separate terminal compartment. The totalizer is easy to use and can be configured on-site to operate with flowmeters having a magnetic pick-off, switch contact, proximity detector, open collector or a voltage pulse output. International certification allows worldwide installation and a 16 segment linearizer ensures maximum accuracy.

Rate totalizer can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. An optional Stainless Steel legend plate is also available which can be supplied laser engraved with customer specified tag and application information.

Supported by a three year guarantee.



We are an authorized BEKA distributor shipping to locations in the United States.

Connect with Hazardous Area Expert

Questions
or Volume Pricing?

Connect with Hazardous Area Expert:
281-978-2040 | Chat with Us
Get Quote

Description

  • Intrinsically safe
  • Configurable input:
    • magnetic pick-off;
    • switch contact;
    • proximity detector;
    • open collector; or
    • voltage pulse
  • Separate rate and total displays with easy-to-read displays
    • Upper display: 8 digit 18mm high
    • Lower display: 6 digit 12 mm high
  • Ingress protection: IP66 GRP Enclosure
  • Separate terminal compartment
  • 16-segment adjustable linearizer
  • Isolated synchronous pulse output
  • Backlight, internally powered
  • Alarm/Control Outputs
  • 4 to 20mA Output

Optional:

  • Scale card & tag/application marking
  • Stainless steel legend plate

Technical Data

Technical Data
Legacy Status Replaces BA333B, BA334B, BA334D
Mounting & Enclosures Field 141 x 212mm
Display Primary: 8 digits, 18mm high
Secondary: 6 digits, 12mm high
Ingress Protection IP66
Linearizer, 16-segment adjustable linearizer Included
Approvals/Certifications ATEX, IECEx, ETL & cETL
Alarm/Control Outputs Included
Backlight, internally powered Included
External Keypad Included
Isolated synchronous pulse output Included
Etched stainless steel legend plate, Legend required Optional

Approvals







ATEX
IECEx
ETL USA & Canada
