Combined Alarm Flare Horns and Xenon Strobe

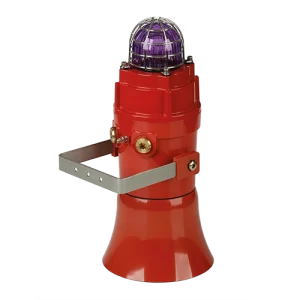

D1xC1X10F Alarm Horn & Xenon StrobeD1xC1X10F Alarm Horn & Xenon Strobe

117dB(A) horn & 10 Joule Xenon. The D1xC1X10F is a high output alarm horn sounder with re-entrant flare horn combined with a 1,000,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xC1X10F is suitable for all Class I Division 1 & Zone 1 explosion proof signaling applications. The DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon).

The alarm horn & Xenon strobe may be powered from a common or dual supply allowing simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently selectable. Each of the available 4 stage/channels can be remotely triggered e.g. via an external relay.
D1xC1X10F Alarm Horn & Xenon Strobe
Specifications
Flare Re-Entrant Horn
Maximum Output117dB (A) @ 1 meter [108dB(A) @ 10ft/3m]
Nominal Output113dB (A) @ 1m+/-3dB-Tone 2 [104dB (A) @ 10ft/3m]
No. of Tones64 (UKOOA/PFEER compliant)
No. of Stages4
Volume ControlAdjustable -12dB (A)
Effective Range125m/410ft @ 1KHz
Supply Voltages24Vdc; 115Vac; 230Vac
Stage SwitchingDC units: negative or positive
AC units:common supply line
Strobe Beacon
Energy10  Joules (10Ws)
Flash RatesOption 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90fpm)
Option 3: Double Strike
Peak Candela100,000 cd-calculated from energy (J)
Effective Intensity500 cd- calculated from energy (J)
Peak Candela85,544 cd*- measured ref. to I.E.S.
Effective Intensity260 cd*-measured ref. to I.E.S.
Lens ColorsAmber, Blue, Clear, Green, Magenta, Red & Yellow
Tube Life:Emissions are reduced to 70% after 8 million flashes
Hazardous Area RatingA1: Gas version
NEC / CEC:
Class I Div 1 ABCD T5/T6 Ta -40C t +55/+50C
Class I Div 2 ABCD T5/T6 Ta -40C to +55/+50C
Class I Zone 1, 2 IIC T5/T6 Ta =40C to +55/+5oC

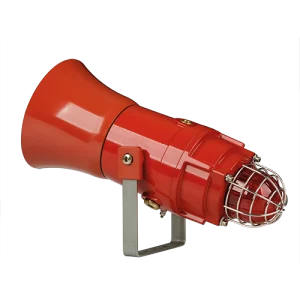

D1xC1X05F Alarm Horn & Xenon StrobeD1xC1X05F Alarm Horn & Xenon Strobe

117dB(A) horn & 5 Joule Xenon. The D1xC1X05F is a high output alarm horn sounder with re-entrant flare horn combined with a 500,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xC1X05F is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications. The DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon). The AC versions are suitable for general signaling.

The alarm horn & Xenon strobe may be powered from a common or dual supply allowing simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently selectable. Each of the available 4 stage/channels can be remotely triggered e.g. via an external relay.
D1xC1X05F Alarm Horn & Xenon Strobe
Specifications
Flare Re-Entrant Horn
Maximum Output117dB (A) @ 1 meter [108dB(A) @ 10ft/3m]
Nominal Output113dB (A) @ 1m+/-3dB-Tone 2 [104dB (A) @ 10ft/3m]
No. of Tones64 (UKOOA/PFEER compliant)
No. of Stages4
Volume ControlAdjustable -12dB (A)
Effective Range125m/410ft @ 1KHz
Supply Voltages24Vdc; 115Vac; 230Vac
Stage SwitchingDC units: negative or positive
AC units:common supply line
Strobe Beacon
Energy5 Joules (5Ws)
Flash RatesOption 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90fpm)
Option 3: Double Strike
Peak Candela500,000 cd-calculated from energy (J)
Effective Intensity250 cd- calculated from energy (J)
Peak Candela46,976 cd*- measured ref. to I.E.S.
Effective Intensity143 cd*-measured ref. to I.E.S.
Lens ColorsAmber, Blue, Clear, Green, Magenta, Red & Yellow
Tube Life:Emissions are reduced to 70% after 8 million flashes
Hazardous Area RatingA1: Gas Version
NEC / CEC:
Class I Div 1 ABCD T5/T6 Ta -40°C to +70/+55°C
Class I Zone 1, 2 IIC T5/T6 Ta -40°C to +70/+55°C
D1: Dust Version
NEC / CEC:
Class II Div 1 FG T4/T4A Ta -40°C to +55/+40°C
Class III Div 1&2
Zone 20, 21, 22 IIIB T4/T4A Ta -40°C to +55/+40°C
